Textile architecture

Inflatable Structures.

Lightweight air-supported structures. Quick to install for shading, events and large temporary covers.

Maximum span
Up to 60 m in diameter
Membrane
Double-faced PVC 610-1050 g/m² or PTFE
Installation
4-6 hours for 500 m²
Logistics
Fits in a single 20' container
Overview

Inflatable Structures.

Cover large spaces fast, with no columns. Our inflatable structures span up to 60 m diameter, erected in hours and dismantled just as quickly.

Inflatable Structures
Benefits

Why our clients choose us.

Express installation

A 500 m² dome erected in 4-6 h, dismantled in 2-3 h.

Wide spans

Up to 60 m diameter, no internal columns or cables.

No foundations

Ballast or precast concrete pads — no excavation needed.

Optimised transport

Full dome fits in a single 20' container.

Reusable

Designed for hundreds of erection/dismantling cycles.

Applications

Who and what for.

Events

Events

Product launches, pop-up shows, weddings, conferences.

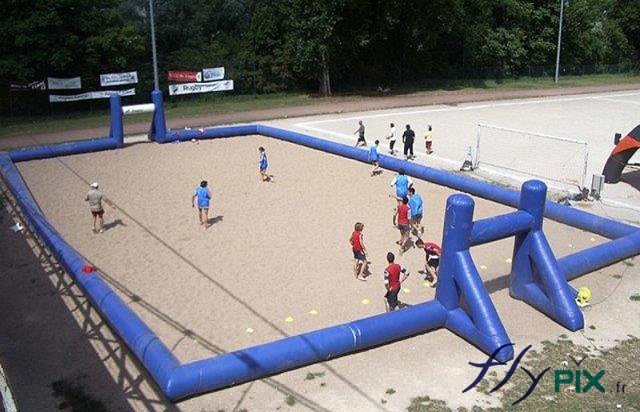

Temporary sports

Temporary sports

Indoor tennis courts, seasonal training halls.

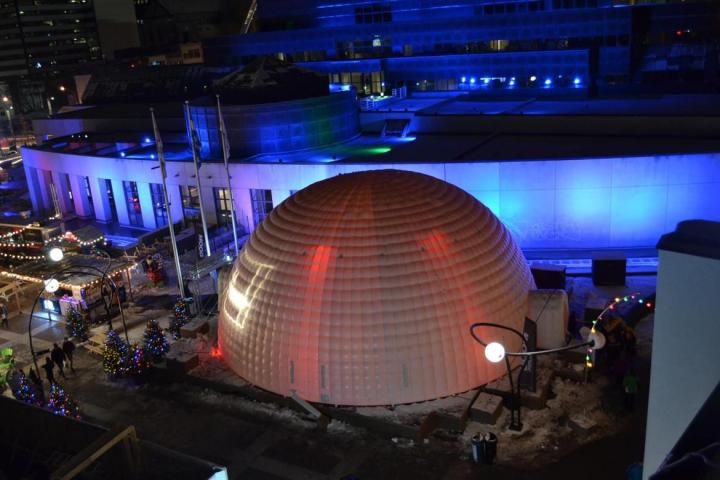

Exhibitions

Exhibitions

Vision 2030 pavilions, trade fairs, biennials.

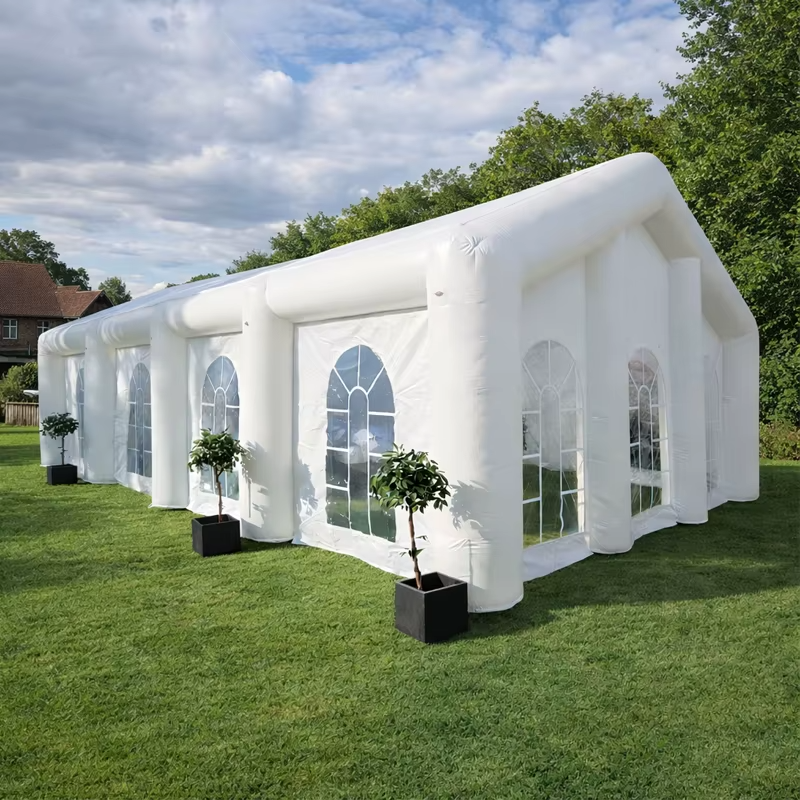

Emergency & humanitarian

Emergency & humanitarian

Field hospitals, triage centres, post-disaster shelters.

Materials

Membrane under continuous pressure

Polyester-reinforced double-faced PVC membrane (610 to 1,050 g/m²), customisable colours. Continuous inflation by low-consumption turbines with a backup unit. Double-door airlock entry to maintain pressure. Optional translucent ETFE in the upper section for natural daylight. AC and heating compatible.

Technical sheet

Key specifications.

Maximum span
Up to 60 m in diameter
Membrane
Double-faced PVC 610-1050 g/m² or PTFE
Installation
4-6 hours for 500 m²
Logistics
Fits in a single 20' container
Power supply
Low-consumption turbines + backup
Reusability
Designed for hundreds of cycles
Start a project

A project in mind?

Tell us about your site and constraints — we'll come back within 48 hours with an indicative quote.

Frequently asked questions

Everything you need to know.

Can't find your answer? info@texprod.com

Primary turbine + backup turbine on generator. In case of total failure, the membrane deflates slowly (several minutes) — ample time to evacuate.
Yes, with reinforced PTFE membrane and regular maintenance. Service life: 15 years and beyond.
Up to 5 % slope without preparation (variable ballast, levelling pads). Beyond: light earthworks recommended.
Yes: sea freight from our Tunisia workshop to every African port. Technical team on site for installation and training.
